Tiltrotators

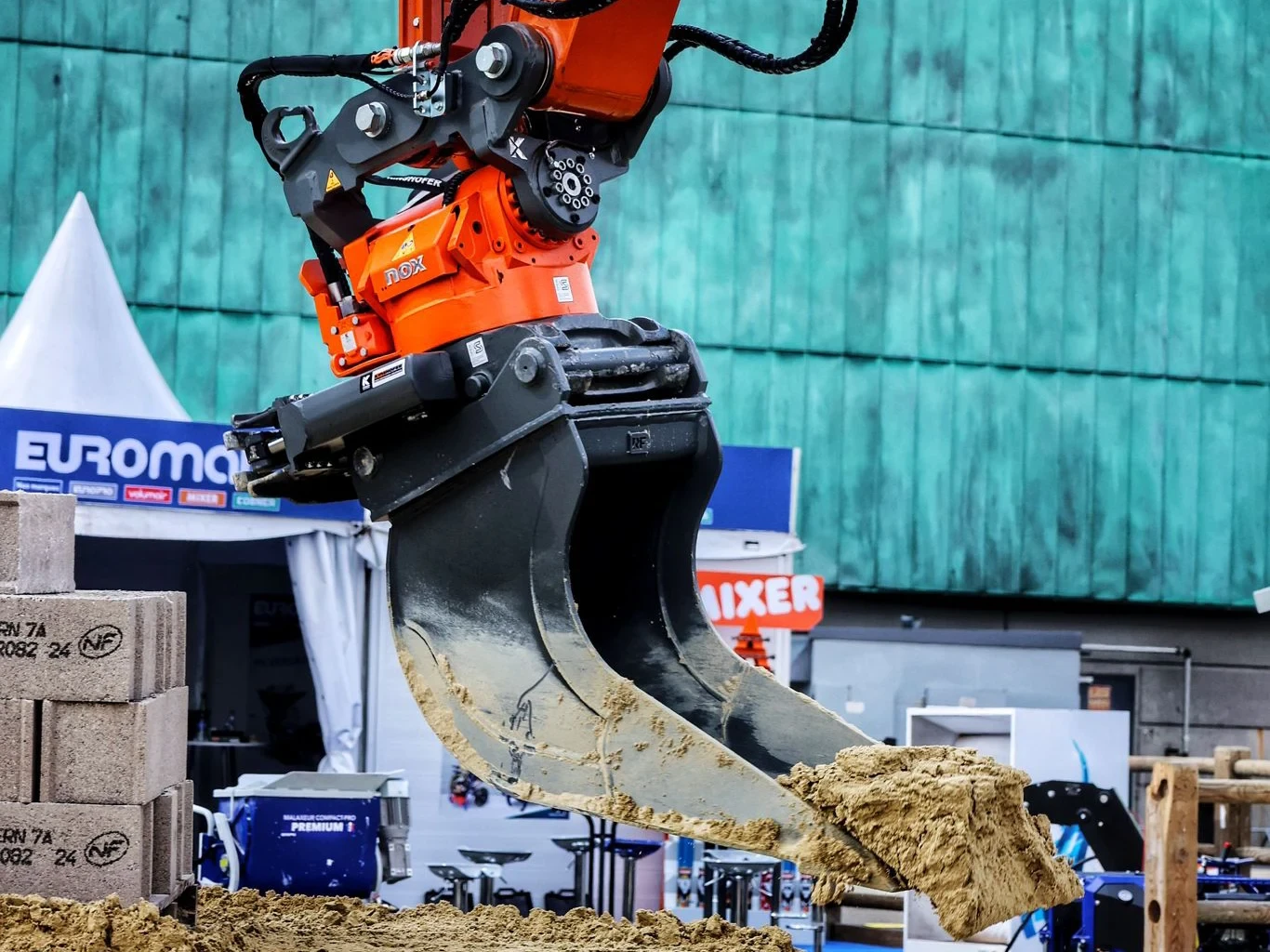

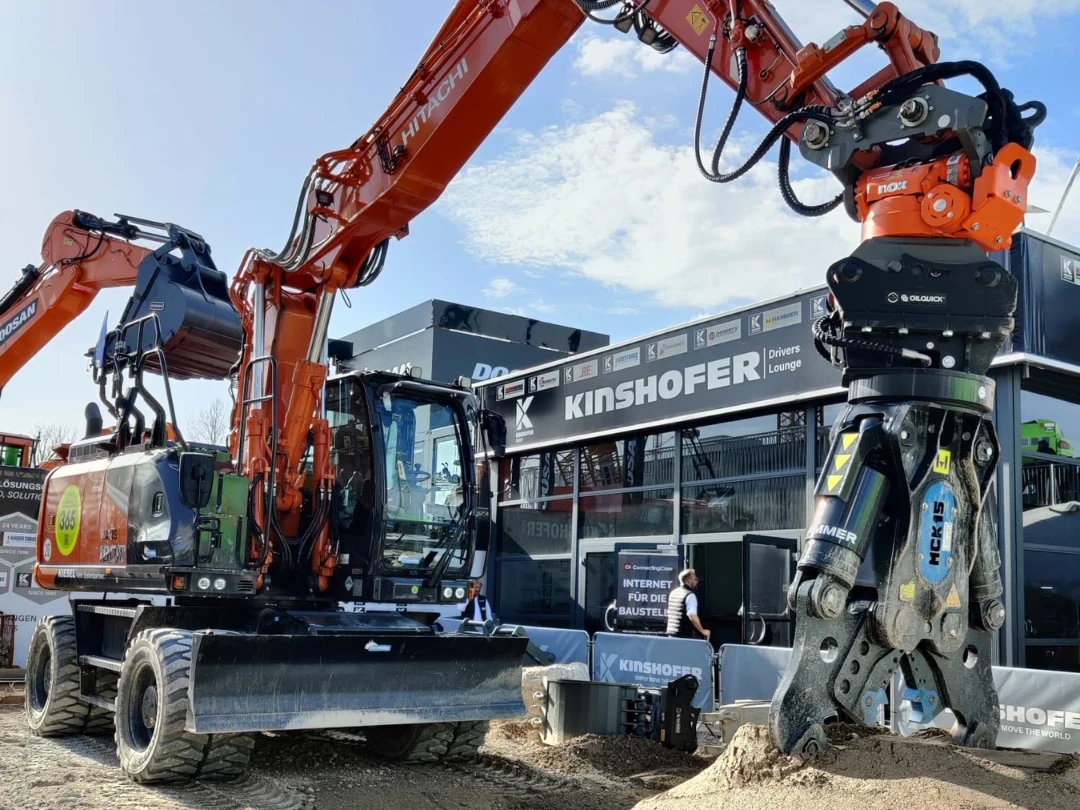

Experience and innovation have resulted in one of the most advanced excavator tools: the latest generation of NOX cylinderless tiltrotators. The 360​​° continuous rotation and 2 x 50° tilt angle make the excavator a multifunctional all-rounder. Due to the lack of cylinders, the construction height is very low and the width of the tiltrotator very narrow. Therefore, the NOX is ideal when working in confined spaces and enables you to complete a variety of work in less time, and create a safe working area.

Key Benefits:

• Boost Productivity & Profitability - Cut job time and machine movement, saving fuel and reducing wear. Most users see up to 25% efficiency gains and a fast return on investment.
• Enhanced Safety – Fewer ground workers needed. The fully hydraulic quick hitch (OilQuick) allows fast, safe attachment changes—no need to leave the cab.
• Unmatched Versatility - The NOX Tiltrotator transforms excavators into multi-functional tool carriers. Its ability to quickly switch between a wide range of attachments allows operators to take on diverse tasks with a single machine, eliminating the need for additional equipment.
• Future-Ready Technology - Integrated sensors and the CSP NOXProp+ system work with Leica, Trimble, and Topcon for precise, automated operation.
• Solving the Labour Shortage - One operator can do more—faster and smarter. Boosts job satisfaction and retention with modern, intuitive controls.
• Reduced Excavator Wear & Fuel Consumption - Less repositioning means less fuel, lower track wear, and reduced overall operating costs.

Features:

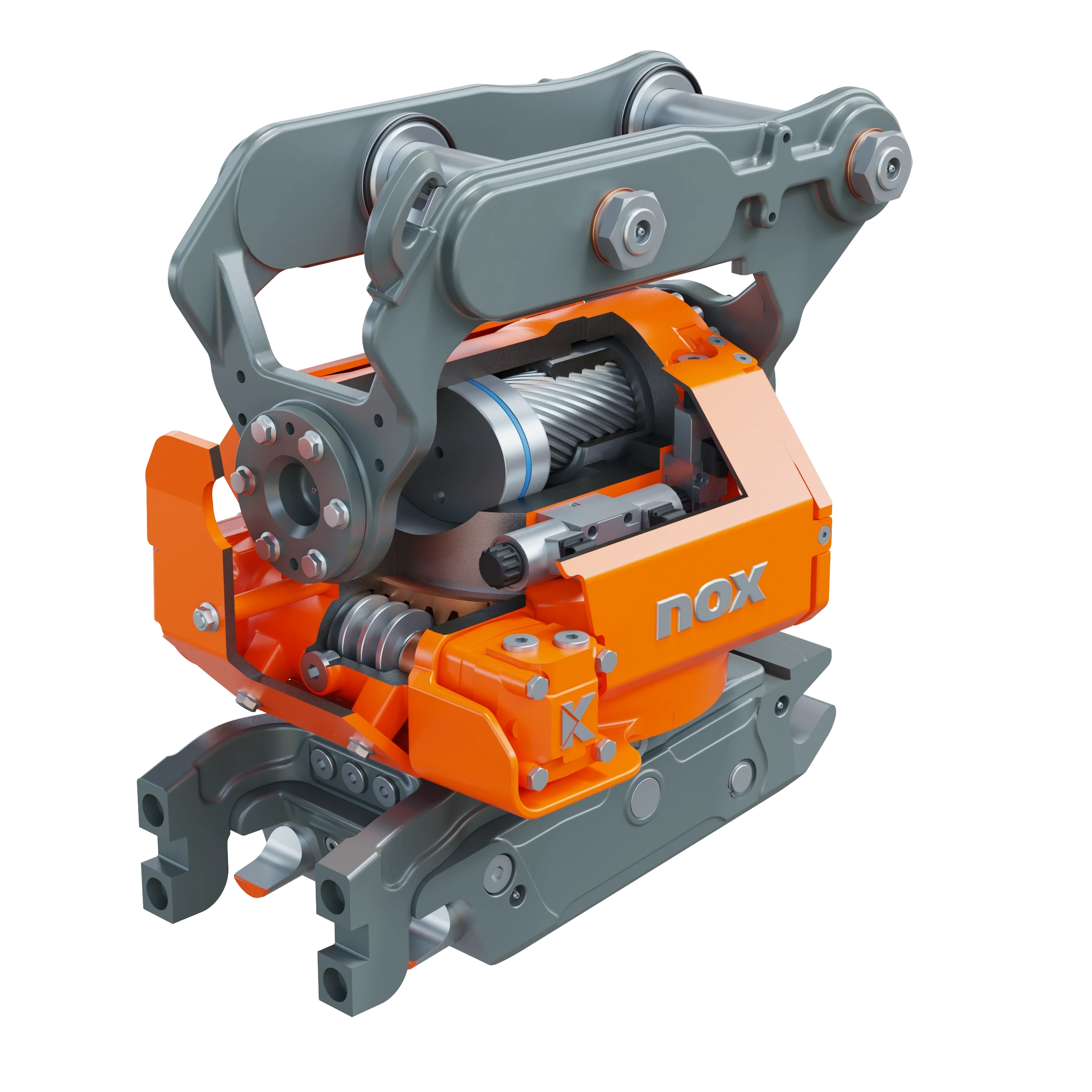

• Cylinder-Less Design - The cylinder-less, elliptical piston system offers a much narrower profile compared to traditional tiltrotators. This is especially important when working in confined spaces like trenches where large cylinders can interfere with the walls and are subject to damage.
• High and Constant Tilt Torque - The elliptic piston design ensures powerful and consistent tilt torque, maximizing performance in demanding applications. In traditional cylinder designs the Breakout force is reduced through the tilting cycle; with the elliptical piston it is constant throughout the entire movement.
• Rugged, Compact Cast Housing - The robust cast housing features a special material alloy, guaranteeing a long life even under the toughest conditions. The integrated motor cover protects the hydraulic motor of the worm drive from damage from below.
• 360° Continuous Rotation & 50° Tilt Angle - An industry leading tilt angle provides exceptional manoeuvrability, allowing work in tight spaces with minimal machine repositioning, increasing productivity.
• Heavy Duty Worm Drive - The oversized worm gear absorbs shock loads with ease. The compact diameter and yet high torque ensures a very slim design, which keeps the overall width of the NOX extremely small.
• Advanced Control System - The NOXProp+ features a touchscreen control system with access to all system features and settings along with GPS integration with 2D/3D Machine Control systems like Leica, Trimble, and Topcon. Four different operator profiles and up to 10 tool profiles allow quick setup changes, making operation intuitive and user-friendly.
• Optional High-Flow Swivel - Supports demanding hydraulic attachments.
• Ergonomic Joystick Control - Precise, multi-function control with intuitive roller placement.

Options:

• OilQuick Fully Automatic Couplers.

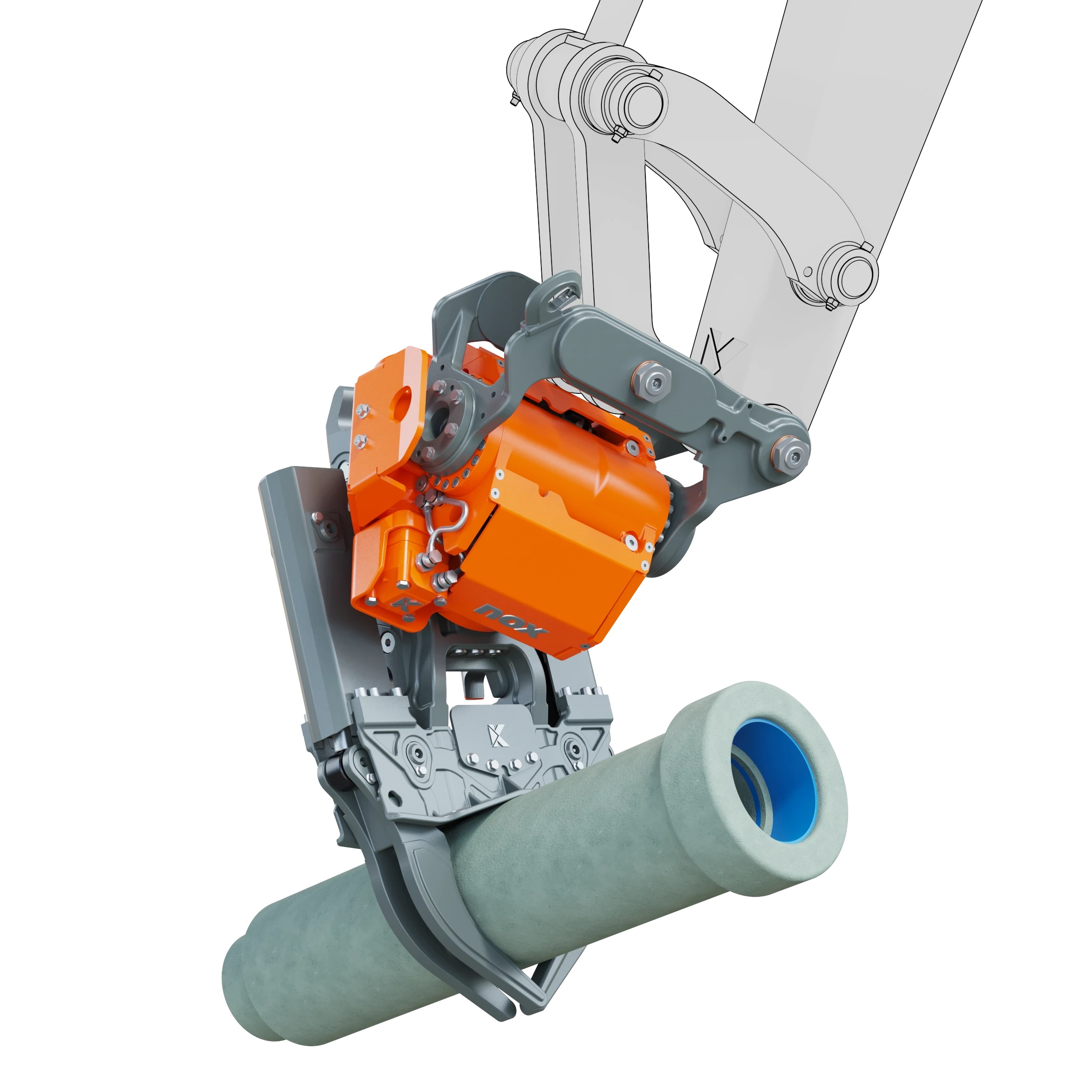

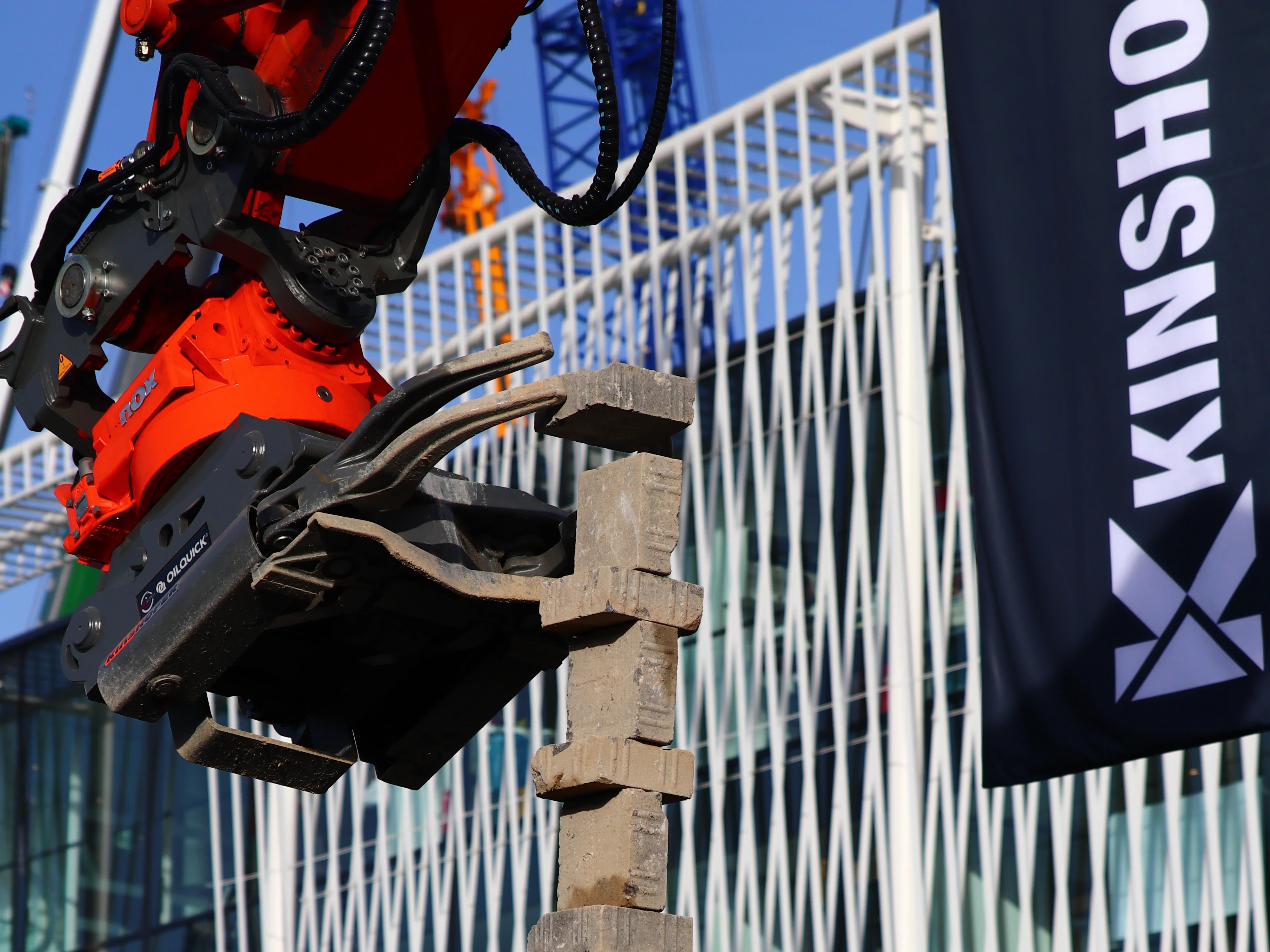

• Hydraulic Gripper Jaw.
• High Flow Swivel.
• Rotation Sensors.
• 2D/3D Control License.
