Specifications:
Model | Excavator Size | Weight | Capacity | RPM |
(ton) | (kg) | (L) | (mm) | |
BVR05 | 1.5 - 2.5 | 110 | 200 | 24 - 32 |
BVR07 | 3 - 5 | 250 | 300 | 18 - 24 |
BVR08 | 5 - 8 | 350 | 500 | 18 - 24 |
BVR09 | 8 - 12 | 690 | 700 | 18 - 24 |
BVR12 | 13 - 16 | 1,320 | 1,300 | 18 - 35 |
BVR14 | 17 - 21 | 1,570 | 1,700 | 18 - 35 |
BVR15 | 22 - 30 | 1,810 | 2,100 | 18 - 35 |
BVR19 | 31 - 40 | 2,550 | 2,800 | 18 - 35 |
BVR25 | 41 - 55 | 4,900 | 5,300 | 18 - 27 |
Resources

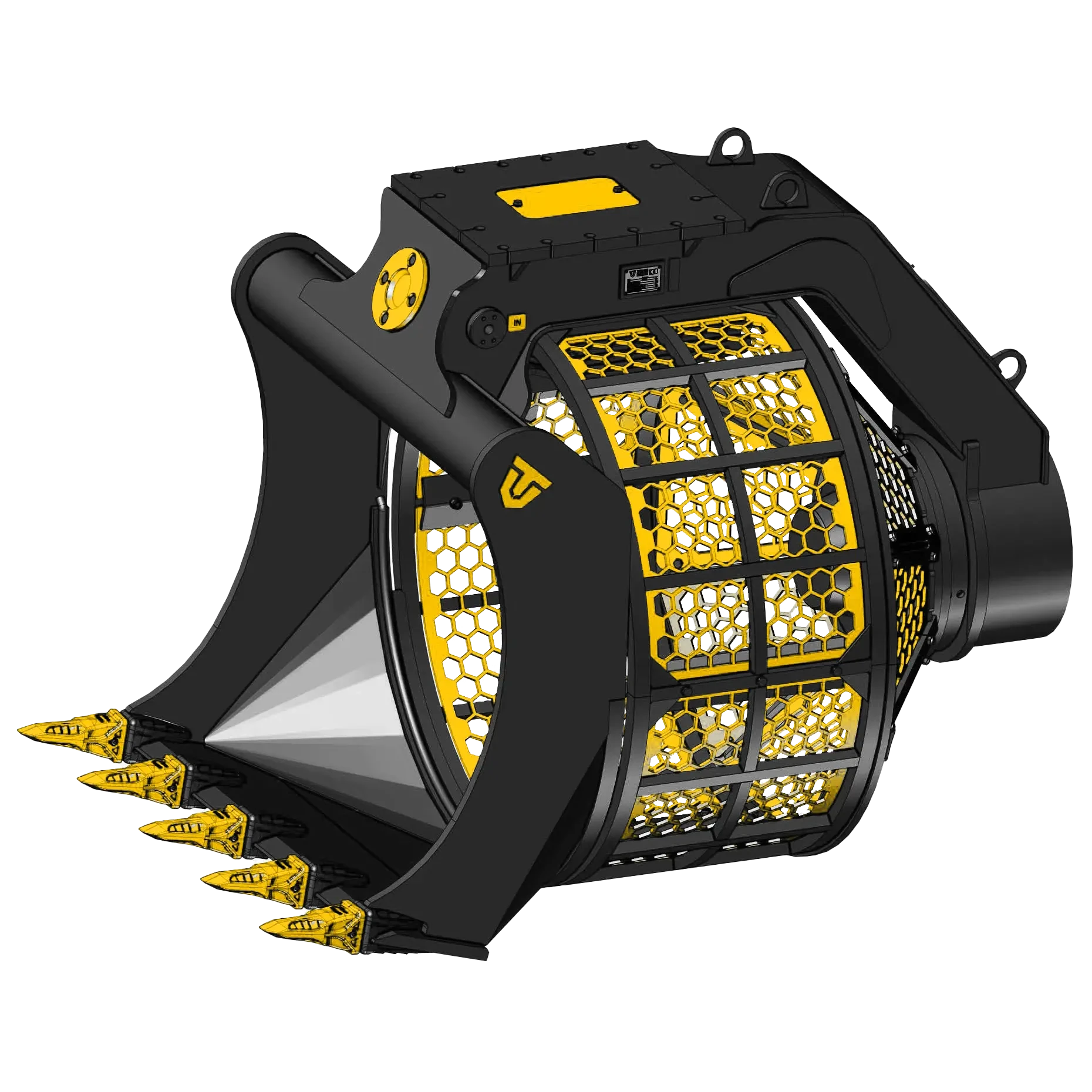

Screening Buckets
Innovative screening made simple
The Trevi Benne BVR screening buckets are cutting-edge tools designed for efficient separation and sorting of materials in construction,
demolition, and recycling industries. Built with robust high-strength steel and featuring interchangeable screen nets, these buckets ensure
high productivity and versatility. Their powerful hydraulic drive system and easy attachment mechanism make them an essential asset for any
heavy-duty material processing task.
Features:
- A range of screen net sizes and materials available depending on the application.
- Interchangeable screen net sections for simple and cost effective maintenance.
- Replaceable teeth.
- Internal pressure relief valves for added protection.
- Double row ball bearings for superior support.
- Hydraulic components integrated in frame for protection.
